Fastening Instructions

Plate and Support Mounted Legs
Plate and Support Mounted Legs
  • Work on the bottom side of the furniture.
  • Align the leg plate to the corner of the frame.
  • Mark the holes with a pencil and drill a pilot hole if necessary.
  • Insert #8 or #10 x 1 1/2" long wood screws.

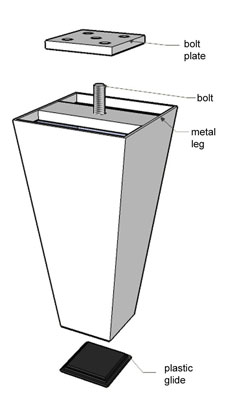

Bolt Mounted Legs
Plate and Support Mounted Legs
  • Work on the bottom side of the furniture.
  • Drill ½” hole into the frame of furniture centered to the size of the leg.
  • Align the center hole of the bolt plate to the hole you drilled in the frame.
  • Attach bolt plate with screws provided.
  • Place leg over bolt plate and thru the bottom of leg use a screwdriver to tighten bolt to bolt plate. (Ball and Cone legs just need to be turned by hand)
  • Insert plastic glide.
Box and Cube Legs
Plate and Support Mounted Legs
  • Work on bottom side of the furniture.
  • Place leg on frame.
  • Insert screws through bottom hole.
Holden Legs
Plate and Support Mounted Legs
  • Work on bottom of furniture.
  • Place Support on furniture, line up Bottom Leg to support. Large Holes facing up.
  • Insert screws through both parts. Fasten.
  • Insert Plastic Glides.
